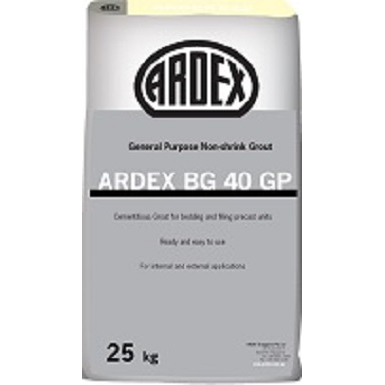

ARDEX BG 40 GP is a ready to use cementitious non-shrink grout to suit various purposes. It is nonmetallic and chloride-free. It requires addition of water to
The product is specially formulated to create a non-shrink, non-metallic, chloride and nitrate free grout. Small amount of water is mixed to ensure early strength and long term durability. The selected composition of silica sand enables homogeneous blending and minimizes separation.
USE:
Bedding bearing plates
Precast applications: bedding precast units (walls, slabs, refuse chutes) and filling of precast joints and gaps
Small patch repairs
FEATURES & BENEFITS
Premixed cementitious grout, economical and easy to use
Shrinkage compensated
Non-corrosive, no corrosion to rebar, staining or deterioration due to rust expansion
Chloride-free composition allows high early strength development without the use of chlorides
LOCATION: Internal and external applications
COVERRAGE:
13.5 m2 (flowable consistency)
12.0 m2 (trowelable consistency)
PACKAGING: 25 kg
APPLICATION
For horizontal application, apply well-mixed ARDEX BG 40 GP to the prepared surface at a thickness of 10 mm to 40 mm in one layer. For vertical applications, reduce the ratio of water to a drier consistency.
For placement of more than 1 layer, the surface of the intermediate layer should be scratch-keyed prior to the application of subsequent layers. Application of the next layer may proceed as soon as the previous layer has fully set. Consistent with cementitious toppings, it is essential to allow ARDEX BG 40 GP to cure naturallly in ambient conditions.
Protect ARDEX BG 40 GP against rapid drying due to strong wind and direct sunlight or high temperature by covering it with poletylene sheet, or wet hessian.
MIXING
Place specific amount of water into a clean container. Slowly add the contents of ARDEX BG 40 GP (powder) and mix with a slow speed drill fitted with a paddle type mixer blade of approx. 3−5 minutes until a homogenous and lump-free consistency is achieved.
COVERAGE (Yield)
Semi Precast (Trowelable): Approx. 12.5 litres/25 kg when mixing with water volume of 3.3−3.5 litres.
Flowable: Approx. 13.5 litres/25 kg when mixing with water volume of 4.25−4.5 litres.
TECHNICAL DATA:
| Semi Precast | Flowable |
Setting Time (ASTM C953): | Initial: > 1 hr final: < 6 hrs | initial : > 1 hr final: < 10 hrs |
Compressive Strength at 7 days | (ASTM C109): > 50 N/mm2 | (ASTM C942): > 50 N/mm2 |
Compressive Strength at 28 days | (ASTM C109): > 70 N/mm2 | (ASTM C942): > 58 N/mm2 |
Bond Strength at 28 day | (EN 12615) ≥ 1.5 N/mm2 | –- |
Shrinkage (ASTM C940): | – | 0% |
Flow consistency (ASTM C1437): | 35%−55% | – |
PACKAGING
ARDEX BG 40 GP is packed in paper sacks incorporating a polyethylene liner – net weight 25 kg.
STORAGE
This product must be stored in unopened packaging, clear of the ground in cool dry conditions and be protected from excessive draught.
If stored correctly, as detailed above, the shelf life of this product is 12 months from the date shown on the packaging.
SAFETY PRECAUTIONS
Avoid contact with skin and eyes; in case of contact with the eyes, rinse immediately with plenty of water and seek medical advice; wear suitable gloves and keep the product out of the reach of children. MSDS is available upon request.
DISCLAIMER
The technical datasheets are based on the latest information and given in good faith and represent te best of our knowledge and experience at the time of printing.They are primarily offered for user’s consideration and evaluation. It is the responsibility of the user to conduct their own tests to validate the suitability of the products.
It is also the responsibility of the user to ensure that the products are used and handled correctly and in accordance with any applicable standards, the product instructions and recommendations and only for the uses they are intended. As we have no control over site conditions and the execution of the work, we accept no liability for any loss or damage which may rise as a result thereof. We also reserve the right to update the information at any time without prior notice to you to reflect our ongoing research and development.
