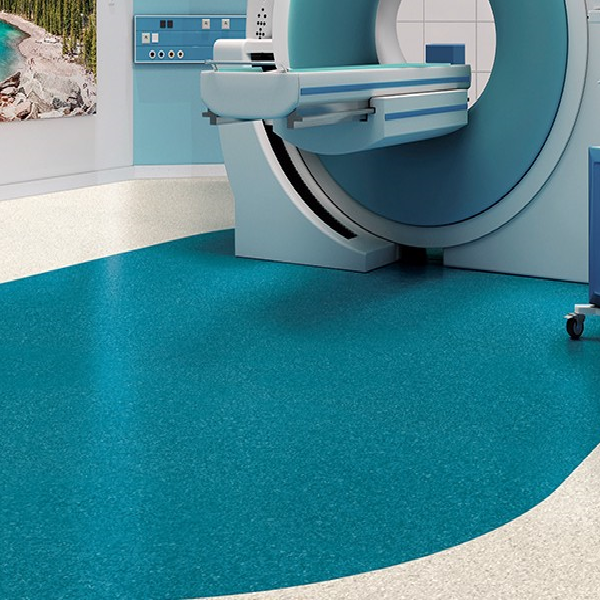

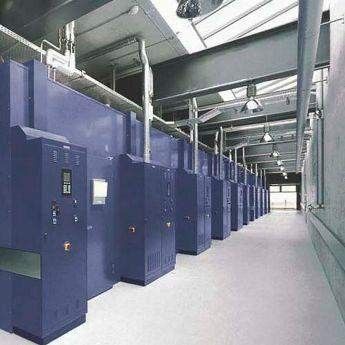

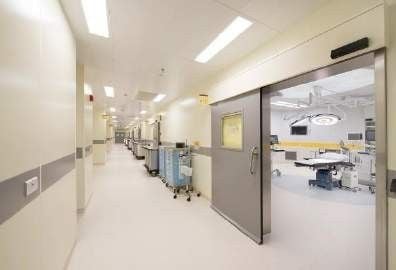

Pastell Conductive / ESD vinyl flooring is divided into 2 groups: conductive with resistance 104 -106 Ohm and the Electrostatic Disperse (ESD) group with resistance from 106 -109 Ohm, widely used in technology and healthcare sectors, which help protect people, prevent damage to critical equipment and minimize data errors for medical machines susceptible to static electricity.
Technical Data
Structure
Standard
Unit
Pastell ESD
Type of flooring
EN 649/EN ISO 10581
Vinyl synthetic floor covering With conductive backing
Overall thickness
EN 428/EN ISO 24346
mm
2
Sheet width / length
EN 426/EN ISO 24341
m
2m/16 - 20m
Total weight
EN 430/EN ISO 23997
g/m2
3000g/m2
Safety Criteria
Flammability
EN 13501 - 1
class
Bfl – s1
Slip resistance
DIN 51 130
group
R9
REACH Regulation No.1907/2006
REACH 181
Contains no substances mentioned in the SVHC – list
