The TIMBERLINE vinyl sheet collection has a great timber look that doesn't harm a single tree, helping to create cozy and luxurious wooden floors while ensuring excellent bacteria resistance. The 2mm thickness and the 0.3mm/0.55mm wear layer is suitable for moderate to heavy traffic areas such as hospital, office, school, etc.
Trademark:
Armstrong Flooring (U.S)
Dimension:
2m x 20m x 2mm (0.3/0.5mm)
Performance Data
- Bacteria resistance: ISO 846-1997
- Moulds resistance: ASTM G21-09
- Chemical resistance: EN423
Safety Criteria
- Floorscore certificated (Low VOC)
- No heavy metals
- Formaldehyde free
- Achieve green certifications: Singapore Green Label, earn LEED points for the building
TECHNICAL SPECIFICATIONS
Characteristics | Standard | Unit | Result |
Type of floor covering | EN 649 | | Heterogeneous vinyl sheet |
Material | | | Polyvinyl chloride |
Polyurethane coating | | | PUR |
Safety Criteria | | | |
Flammability | EN 1301-1 | class | B1 |
Slip resistance | DIN 51130 | group | R9 |
Dynamic coefficient of friction | EN 13893 | class | DS |
General Properties | | | |
Roll width | EN 426 | m | 2.0 |
Roll length | EN 426 | m | 15/20 |
Overall thickness | EN 428 | mm | 2.0 |
Thickness of wear layer | EN 429 | mm | 0.3/0.55 |
Total weight | EN 430 | kg/m2 | 2.8 |
Dimensional stability | EN 434 | % | ≤ 0.4 |
Residual indentation | EN 433 | mm | 0.02 |
Wear resistance | EN 649 | group | T |
Color fastness | ISO 105-B02 | rating | ≥ 6 |
Classification | ISO 10874-EN 685 | class | Commercial: 31/33 |

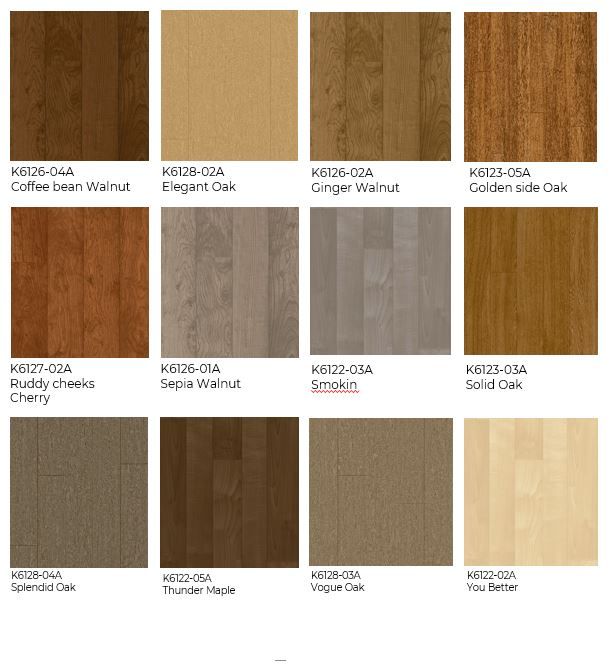

Timberline Collection comes from the natural beauty and character of a variety of woods from traditional oak, maple and cherry, to exotic merbau and bamboo. It harmonizes products across the Armstrong Flooring commercial portfolio for a one-of-a-kind, high-performance, aesthetically-satisfying finished design.
